ROL

Synopsis:

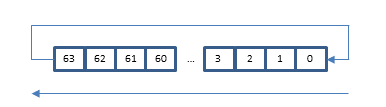

Rotate register left.

Operation:

Rt = Ra << Rb

Description:

This instruction rotates a general purpose register left the number of bits specified in a second general purpose register and places the result in a general purpose register. Only the low order six bits of Rb are significant. This instruction will not cause any exceptions.

Format:

Opcode₇	Ra₅	Rb₅	Rt₅	Reserved₄	Func₆
2	Ra₅	Rb₅	Rt₅	_----	42

Assembler Sample:

ROL R4,R5,R6
