ROLI

Synopsis:

Rotate register left.

Operation:

Rt = Ra << #n

Description:

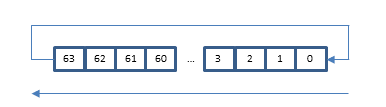

This instruction rotates a general purpose register left the number of bits specified by an immediate constant and places the result in a general purpose register. This instruction will not cause any exceptions.

Format:

Opcode₇	Ra₅	Rt₅	Imm₆	Reserved₅	Func₄
3	Ra₅	Rt₅	Imm₆	_----	2

Assembler Sample:

ROLI R4,R5,#27
